Climatronic Control Module -J255- PIN ASSIGNMENT, CC MY 2010 FROM 11/07/2011

Special tools and workshop equipment required

Test Box Kit - Adapter 47VAG1598/47

NOTE:

Due to differences in equipment levels, use the most current wiring diagram to find the exact assignment of the individual connector positions and assignments. Refer to appropriate System Wiring Diagram Information.

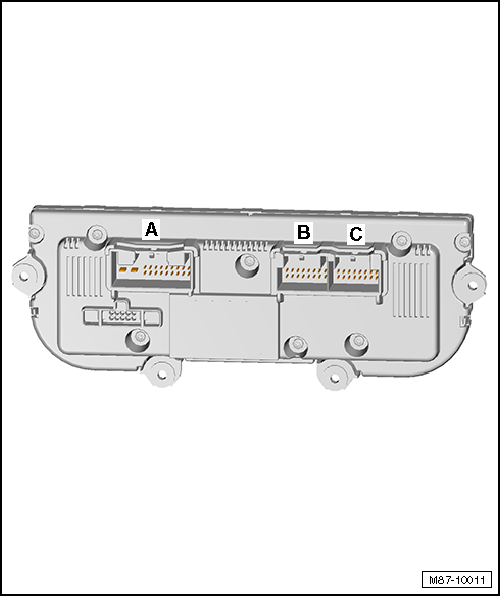

Fig 1: Identifying Display And Control Unit Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A -
20-Pin Connector
- Due to differences in equipment levels, use the most current wiring diagram to locate the connector and connector assignments. Refer to appropriate System Wiring Diagram Information.
B -
16-Pin Connector
- Due to differences in equipment levels, use the most current wiring diagram to locate the connector and connector assignments. Refer to appropriate System Wiring Diagram Information.
C -
16-Pin Connector
- Due to differences in equipment levels, use the most current wiring diagram to locate the connector and connector assignments. Refer to appropriate System Wiring Diagram Information.
