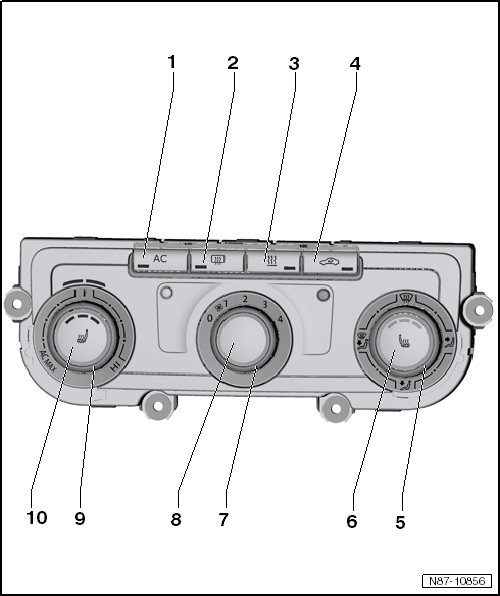

Overview - Display And Control Unit, Manual Climate Control System, From 05/30/2011 Through 06/22/2012
NOTE:
An indicator lamp inside the controls indicates when the selected function is on.
If the lamp in the AC button does not come after the button is pushed, there may be a fault in the control module. Call up the DTC memory using the Vehicle Diagnostic Tester. If the fault entry "A/C compressor first start not performed" is present, then is it necessary to perform a basic setting and an adaptation "A/C compressor first start" either in Guided Fault Finding or in Guided Functions.
Note the vehicles with a Start/Stop System. Refer to START/STOP SYSTEM .
- AC
Button
- The A/C compressor is set to almost 0 delivery when the AC button is off.
- Rear Window Defogger Button
- Rear window defroster remains on for 4 to 20 minutes, depending on exterior temperature.
- Immediate Heating Button -E537- or Heated Windshield
- Depending on the equipment level
- Recirculation Mode ButtonNOTE:
The recirculating air mode turns off during ignition and returns to fresh air mode.
On vehicles for Japan "recirculating air mode" stays on after ignition.
- Air Distribution Control
- Heated Front Passenger Seat Adjuster -E95- (optional)
- The seat heating as 3 settings. An LED indicates which setting is selected.
- If no LED is illuminated, the seat heater is switched off.
- Blower Speed Display
- Blower Speed Control
- To the left: decreases the blower speed.
- To the right: increases the blower speed.
- Temperature Control
- To the left: lower the temperature.
- To the right: increases the temperature
- Heated Driver Seat Adjuster -E94- (optional)
- The seat heating as 3 settings. An LED indicates which setting is selected.
- If no LED is illuminated, the seat heater is switched off.
