RNS 315 Radio Navigation System Overview

WARNING: This page is about a different car, the 2011 Volkswagen CC, 2010 Volkswagen CC, and 2009 Volkswagen CC. However, it is still accessible from the selected car via links, so may be relevant.

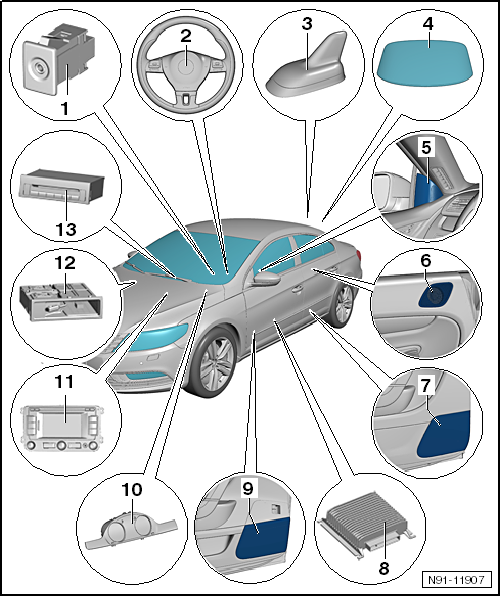

Fig 1: Identifying RNS 315 Radio Navigation System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

External Audio Source Connection -R199-
- Located inside the storage compartment under the center armrest.
- Additional information can be found in EXTERNAL AUDIO SOURCE CONNECTION R199 .
Left Multifunction Buttons On Steering Wheel -E440- and Right Multifunction Buttons On Steering Wheel -E441-
- Additional information can be found in MULTIFUNCTION STEERING WHEEL/RADIO/NAVIGATION SYSTEM .
Roof Antenna -RX5-
- Located on the roof at the back of the vehicle.
- Installed only if, in addition to the radio, a telephone is installed at the factory
- Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
Antenna -R11- and Radio Antenna 2 -R93-
- Inside the rear window.
- AM and FM antenna with diversity function.
- Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
Left Front Treble Speaker -R20- and Right Front Treble Speaker -R22-
- Inside the left and right front mirror triangle.
- Additional information can be found in SPEAKERS .
Left Rear Treble Speaker -R14- and Right Rear Treble Speaker -R16-
- Installed inside the left and right rear door trim panels.
- Additional information can be found in SPEAKERS .
Left Rear Bass Speaker -R15- and Right Rear Bass Speaker -R17-
- Installed inside the left and right rear doors.
- Additional information can be found in SPEAKERS .
Digital Sound System Control Module -R12-
- Optional
- Installed under the left front seat.
- Additional information can be found in AMPLIFIER R12 .
Left Front Bass Speaker -R21- and Right Front Bass Speaker -R23-
- Installed inside the left and right front doors.
- Additional information can be found in SPEAKERS .
Instrument Cluster Control Module -J285-
Radio/RNS -RX1-
- RNS 315
- Removing and installing, refer to RADIO/NAVIGATION SYSTEMS .
- Connector overview, refer to CONNECTOR ASSIGNMENTS .
- Anti-theft coding, refer to RNS 315 RADIO NAVIGATION SYSTEM .
External Multimedia Device Interface -R215-
- Located inside the glove compartment.
- Additional information can be found in EXTERNAL MULTIMEDIA DEVICE INTERFACE R215 .
- It is not possible to have a CD changer -R41- if the vehicle has an external multimedia device interface because they both have the same installed location.
CD Changer -R41-
- Located inside the glove compartment.
- Additional information can be found in CD CHANGER R41 .
- It is not possible to have a CD changer if the vehicle has an External multimedia device interface -R215- because they both have the same installed location.
