Control Module Software Configuration-Function And Description (CTT 91-15-02)
Publication date: 2015-03-25Reference number: CTT 91-15-02
CONTROL MODULE SOFTWARE CONFIGURATION-FUNCTION AND DESCRIPTION
TECH TIPS - CANADA
Reference Number(s): CTT 91-15-02, Date of Issue:
March 25, 2015
| VOLKSWAGEN: | 2014 - 2015 A7 Golf and Golf Wagon A7 |
| GROUP: | 91 - Radio, Telephone, Navigation |
SERVICE INFORMATION
2014 - 2015 A7 Golf and Golf Wagon A7 Control Module Software Configuration-Function and Description
This test plan is available in ODIS under the "Special Functions" tab. It is used to code, parameterize, and configure control modules. This test would be used when a module is replaced and the new module needs to be configured for operation. This test plan will not, however, activate and features of the module. A separate test plan needs to be run to accomplish this. Refer to CTT 91-15-01 for more information.

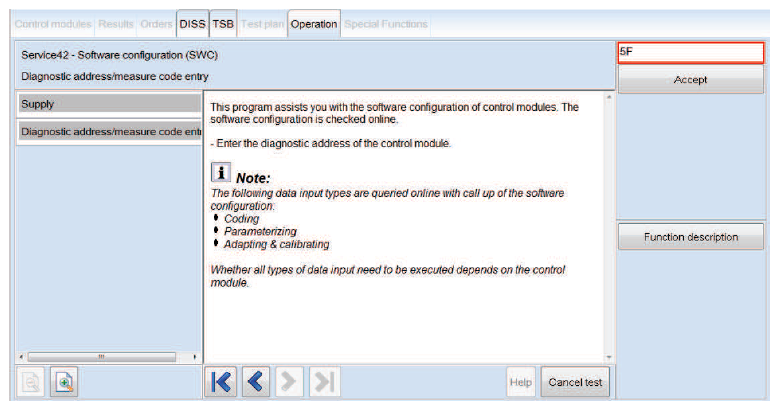

Ex: In this case the J794 has been replaced so the address word 5F has been entered. Once accepted, the test plan will code, parameterize and adapt the new module.
