Central Locking Component Overview

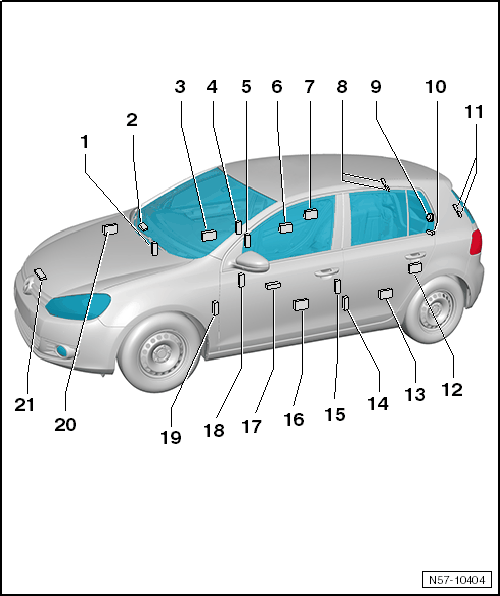

Fig 1: Identifying Central Locking Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coupling Station
- Installed location: right A-pillar.
- Loosen the boot on the pillar to disconnect the connector.
Vehicle Electrical System Control Module -J519-
- Installed location: under the instrument panel on the driver side.
- Removing, refer to [For engine(s) CBTA, CJAA, CBUA, CCTA, CBFA]VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519- .
Front Passenger Door Control Module -J387-
- Integrated in window regulator motor.
- Removing, refer to FRONT DOOR WINDOW REGULATOR MOTOR .
Right Front Door Lock
- The door lock is attached to the inner door panel.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Connector Station
- Installed location: right B-pillar
- Loosen the boot on the pillar to disconnect the connector.
Driver Door Control Module -J386-
- Integrated in window regulator motor.
- Removing, refer to REAR DOOR WINDOW REGULATOR MOTOR .
Right Rear Door Lock
- The door lock is attached to the inner door panel.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Right Rear Lid Connector Station
- Installed location: behind the trim on the C-pillar
- Removing and installing, refer to Removal and Installation .
Unlocking Element with Button
- Installed location: attached in the rear lid.
- Removing, refer to REAR LID RELEASE ELEMENT .
Rear Lid Lock
- Installed location: attached to the rear lid.
- Removing, refer to REAR LID LOCK .
Left Rear Lid Connector Station
- Installed location: behind the trim on the C-pillar
- Removing and installing, refer to Removal and Installation .
Left Rear Door Lock
- The door lock is attached to the inner door panel.
- The power central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Left Rear Door Control Module -J388-
- Integrated in window regulator motor.
- Removing, refer to REAR DOOR WINDOW REGULATOR MOTOR .
Connector Station
- Installed location: left B-pillar
- Loosen the boot on the pillar to disconnect the connector.
Left Front Door Lock
- The door lock is attached to the inner door panel.
- The power central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Driver Door Control Module -J386-
- Integrated in window regulator motor.
- Removing, refer to FRONT DOOR WINDOW REGULATOR MOTOR .
Central Switch for Window Regulator
- Installed location: inside the door trim panel.
- Remove and installing central window regulator switch, refer to [For engine(s) CBTA, CJAA, CBUA, CCTA, CBFA] FRONT DOOR LAMPS AND SWITCHES .
Central Locking Button
- Installed location: inside the door trim panel.
- Removing and installing the central locking button, refer to [For engine(s) CBTA, CJAA, CBUA, CCTA, CBFA] FRONT DOOR LAMPS AND SWITCHES .
Coupling Station
- Installed location: left A-pillar
- Loosen the boot on the pillar to disconnect the connector.
Alarm Horn -H12-
- In the right front wheel housing.
- Removing, refer to [For engine(s) CBTA, CJAA, CBUA, CCTA, CBFA] ALARM HORN .
Engine Hood Contact Switch -F266-
- Anti-theft warning system contact switch.
- Installed location: on the latch.
- Removing, refer to [For engine(s) CBTA, CJAA, CBUA, CCTA, CBFA] ENGINE HOOD CONTACT SWITCH -F266- .
