Front Door Overview

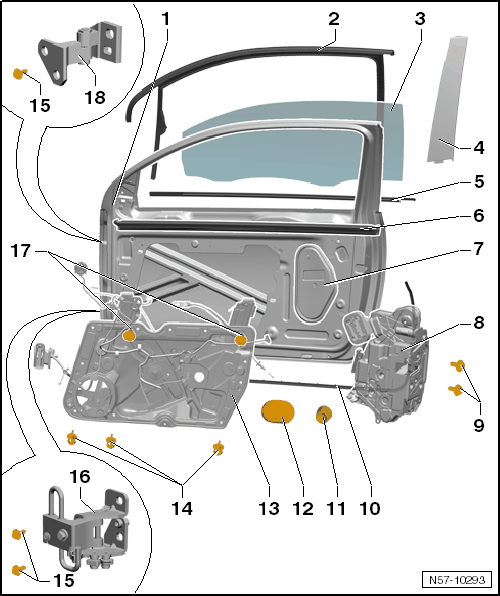

Fig 1: Identifying Front Door Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door
- Removing and installing, refer to DOOR .
- Adjusting, refer to DOOR, ADJUSTING .
Window Guide
- Removing and installing, refer to FRONT DOOR WINDOW GUIDE .
Door Window
- Removing and installing, refer to FRONT DOOR WINDOW .
Trim
- Removing and installing, refer to TRIM .
Outer Window Recess Seal
- Removing and installing, refer to OUTER WINDOW RECESS SEAL .
Inner Window Recess Seal
- Removing and installing, refer to INNER WINDOW SHAFT STRIP .
Cover
- Only on the 2-door model
- Removing and installing, refer to COVER, 2-DOOR VEHICLE .
Door Lock
- Door lock can only be removed in conjunction with subframe
- Removing and installing, refer to DOOR LOCK .
Bolt
- Tightening specification: 20 Nm
- Quantity: 2
Outer Door Seal
- Removing and installing on a 2-door model, refer to OUTER DOOR SEAL, 2-DOOR VEHICLE .
- Removing and installing on a 4-door model, refer to OUTER DOOR SEAL, 4-DOOR VEHICLE .
Buffer
Cover
Subframe
- Removing and installing, refer to SUBFRAME .
- With window regulator.
Clips
- For mounting the subframe
Bolt
- For the hinge mount, there are different tightening specifications.
Bottom Door Hinge
- With a door arrester
- The hinge is not separated.
Bolt
- Tightening specification: 8 Nm
- For mounting the window regulator inside the door.
Upper Door Hinge
- The hinge is not separated.
