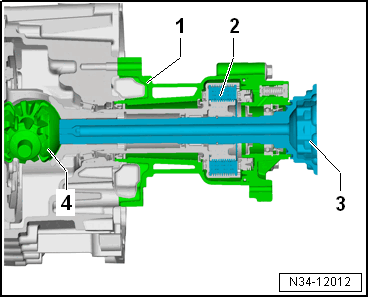

Schematic Overview - Front Axle Differential Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Axle Differential Lock
   • Is installed depending on vehicle equipment. Refer to TRANSMISSION/ENGINE ALLOCATION, GOLF, MANUAL TRANSMISSION 02Q WITH FRONT AXLE DIFFERENTIAL LOCK .
2. Multi-Disc Clutch
3. Right Flange Shaft
4. Transmission Differential
