Cell Phone Operating Electronics Control Module -J412-, REMOVING AND INSTALLING, UMI CONTROL MODULE IN THE GLOVE COMPARTMENT: Removing

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Disconnect any devices connected to the Cell Phone Operating Electronics Control Module -J412-.

-- Remove the glove compartment. Refer to STORAGE COMPARTMENTS AND COVERS .

-- Release and disconnect the connector from the Cell Phone Operating Electronics Control Module -J412-.

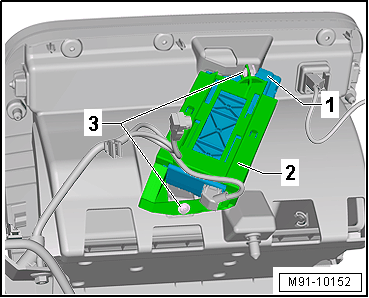

-- Remove the screws -3- and remove the Cell Phone Operating Electronics Control Module -J412- -1- with the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- from the Cell Phone Operating Electronics Control Module -J412- -1-.
