Windshield Wiper Arms, Adjusting: Procedure: Notes

-- Deactivate the APP function. Refer to Wiper Motor Control Module -J400-, DEACTIVATING APP .

-- Let the wiper return to its park position and then turn off the ignition.

-- Adjust the windshield wiper arms at this time.

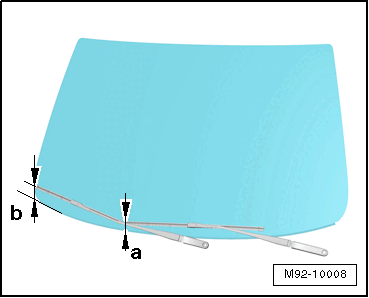

Driver Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Distance -a- between tips of wiper lips and upper edge of plenum chamber cover must be 10 mm.

-- If necessary, adjust the windshield wiper blade park position by repositioning the windshield wiper arm.

Passenger Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Distance -b- between tips of wiper lips and upper edge of plenum chamber cover must be 10 mm.

-- If necessary, adjust the windshield wiper blade park position by repositioning the windshield wiper arm.
