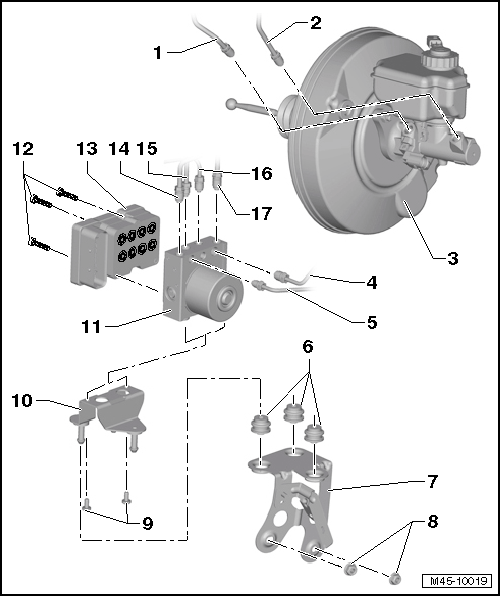

Overview - Abs Mark 70 (Abs/ASR)
- Brake Line
- 14 Nm
- Brake master cylinder/primary piston circuit to the ABS Hydraulic Unit -N55-
- Identification: Pipe Fitting with M12 x 1 Threads
- Brake Line
- 14 Nm
- Brake master cylinder/secondary piston circuit to the ABS Hydraulic Unit -N55-
- Identification: Pipe Fitting with M12 x 1 Threads
- Brake Booster with Master Brake Cylinder
- On gasoline engines, the required vacuum is supplied either by the intake manifold or by a vacuum pump.
- Function Test:
-- Forcefully press brake pedal several times with engine switched off. This dissipates any vacuum present in the unit.
-- Hold the brake pedal with average foot pressure and start the engine. If the brake booster is working properly, the brake pedal will be felt to give noticeably under foot (booster becomes effective).
- If malfunctioning: replace as complete unit.
- Refer to BRAKE BOOSTER/BRAKE MASTER CYLINDER
- Brake booster, removing and installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
- Brake master cylinder, removing and installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING .
- Brake Line
- 14 Nm
- To left rear brake caliper/brake cylinder
- Identification: Pipe Fitting with M12 x 1 Threads
- Brake Line
- 14 Nm
- To the right rear brake caliper/brake cylinder
- Identification: Pipe Fitting with M10 x 1 Threads
- Rubber Bushing
- Do not press the rubber bushings out of the bracket when installing the bracket.
- Bracket
- Is attached to the body
- Nut
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Bracket
- ABS Hydraulic Unit -N55-
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- Bolt
- 5.5 Nm
- Replace after removing.
- Quantity: 3
- ABS Control Module -J104-
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- Disconnect from the ABS Hydraulic Unit -N55-. Refer to ABS Control Module -J104-, SEPARATING FROM ABS Hydraulic Unit -N55- (MARK 70 ABS/ASR) .
- Brake Line
- 14 Nm
- ABS Hydraulic Unit -N55- for the brake master cylinder/primary piston circuit
- Identification: Pipe Fitting with M12 x 1 Threads
- Brake Line
- 14 Nm
- To the left front brake caliper
- Identification: Pipe Fitting with M10 x 1 Threads
- Brake Line
- 14 Nm
- To the right front brake caliper
- Identification: Pipe Fitting with M12 x 1 Threads
- Brake Line
- 14 Nm
- ABS Hydraulic Unit -N55- to the brake master cylinder/secondary piston circuit.
- Identification: Pipe Fitting with M12 x 1 Threads
