Abs Control Module -J104- And Abs Hydraulic Unit -N55-, Removing And Installing, With 5-Cylinder Gasoline Engine And Abs Mark 70 Abs/ASR: Removing

GWWM45-10004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component Location:

The ABS Control Module -J104- is attached to the ABS Hydraulic Unit -N55- and is located inside the engine compartment on the right side.

  1. ABS Hydraulic Unit -N55- with ABS Control Module -J104-
  2. Brake Booster with Tandem Brake Master Cylinder
WARNING:

Do not bend the brake lines near the ABS Hydraulic Unit -N55- !

-- Retrieve the coding from the ABS Control Module -J104- and write it down.

Use the Vehicle Diagnostic Tester.

NOTE:

The battery ground cable must be disconnected for the following procedure. Check if a coded radio is installed. If necessary, obtain anti-theft code beforehand.

CAUTION:

Danger of causing damage to electronic components when disconnecting the battery.

  • Follow the steps for disconnecting the battery.

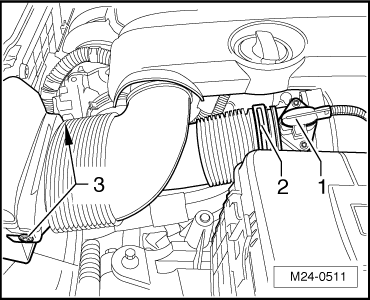

-- Open clamp -2- and remove intake hose.

GWWM24-0511Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, disconnect the connector -1- and remove.

-- Remove the bolts -3- and the intake hose.

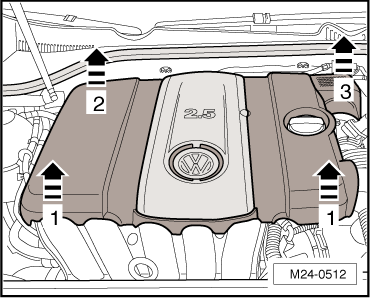

-- Pull the engine with a jerk out of the fasteners first at the front in direction of -arrow 1-, then at the right rear in direction of -arrow 2- and finally at the left rear in direction of -arrow 3-.

GWWM24-0512Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully swivel engine cover out of rear area.

GWWM45-0234Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, remove the nut -1- and remove the heat shield -2-.

-- Disconnect and remove the connector from the ABS Control Module -J104- in direction of -arrow-.

GWWM45-0235Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :VAG1869/2  .

GWWA44-0007Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove front left caps -1-.

GWWN01-10746Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove rear left caps -1-.

GWWN01-10747Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Use a Suitable Bleeder Hose

It Must Fit Tightly on the Bleeder Valve So That No Air Can Get into the Brake System

-- Attach the bleeder bottle bleed hose -1- to the left front brake caliper breather valve.

GWWM46-10052Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the breather valve.

-- Attach the bleeder bottle bleed hose -1- to the left rear brake caliper breather valve.

GWWM46-10039Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the breather valve.

-- Push the brake pedal at least 60 mm using the :VAG1869/2  .

-- Close the left front and left rear bleeder valves.

Do not remove the :VAG1869/2  .

-- Place enough lint-free cloths under the ABS Control Module -J104- and the ABS Hydraulic Unit -N55-.

Make Sure No Brake Fluid Gets on the Contacts

-- Mark brake lines -A and B- from brake master cylinder.

GWWM45-10003Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake lines -A and B- from the ABS Hydraulic Unit -N55-.

-- Seal the threaded hole immediately with plugs from the assembly repair kit.

-- Close brake lines immediately using Sealing Plugs or with suitable plugs from the :VAS6122  .

-- Mark brake lines (brake calipers) -1 to 4-, unscrew and seal.

-- Seal the threaded hole immediately with plugs from the assembly repair kit.

-- Close brake lines immediately using Sealing Plugs or with suitable plugs from the :VAS6122  .

-- Remove the ABS Hydraulic Unit -N55- and the ABS Control Module -J104- in direction of -arrow- and pull upward out of the shock absorbers.

GWWN45-10042Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the ABS Hydraulic Unit -N55- with the ABS Control Module -J104- upside down.

-- Unscrew and remove the bracket -item  ) OVERVIEW - ABS MARK 70 (ABS/ASR)- from the ABS Hydraulic Unit -N55- inside the engine compartment.

-- Remove the ABS Hydraulic Unit -N55- with the ABS Control Module -J104-.
