Overview - RHD, Abs Mark 70 (Abs/ASR)

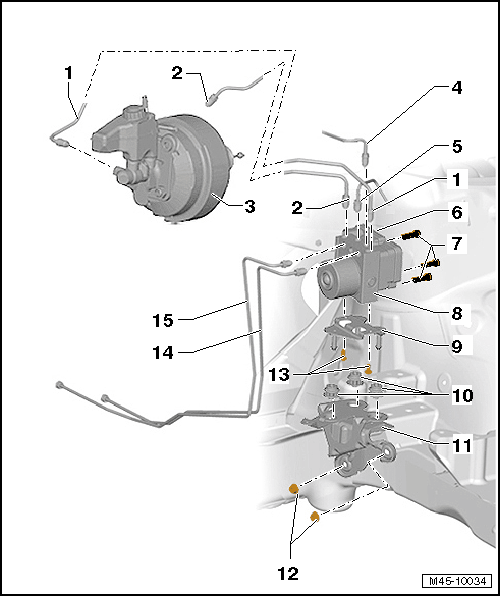

Fig 1: Exploded View Of RHD, ABS Mark 70 (ABS/ASR)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Identification: tube fitting with threads M 12 x 1
- 14 Nm
Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: tube fitting with threads M 10 x 1
- 14 Nm
Brake Booster
- Overview. Refer to BRAKE BOOSTER/BRAKE MASTER CYLINDER .
Brake Line
- To the right front brake caliper
- Identification: tube fitting with threads M 10 x 1
- 14 Nm
Brake Line
- To the left front brake caliper
- Identification: tube fitting with threads M 12 x 1
- 14 Nm
ABS Control Module -J104-
- Removing and installing. Refer to ABS Control Module -J104- AND ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING, RHD WITH ABS MARK 70 ABS/ASR .
- Disconnecting from the ABS Hydraulic Unit -N55-. Refer to ABS Control Module -J104-, SEPARATING FROM ABS Hydraulic Unit -N55- (MARK 70 ABS/ASR) .
Torx Socket Bolt
- Use new bolts.
- 5.5 Nm
ABS Hydraulic Unit -N55-
- Removing and installing. Refer to ABS Control Module -J104- AND ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING, RHD WITH ABS MARK 70 ABS/ASR .
- Disconnecting the ABS Control Module -J104- from the ABS Hydraulic Unit -N55-. Refer to ABS Control Module -J104-, SEPARATING FROM ABS Hydraulic Unit -N55- (MARK 70 ABS/ASR) .
Bracket
Rubber Bushing
- When installing the bracket, make sure the rubber bushing does not push out of the bracket.
Bracket
- Before the assembly spray the rubber bushing -item ) OVERVIEW - RHD, ABS MARK 70 (ABS/ASR)- with Silicone Grease Spray
- after installing, make sure it fits properly
Hex Nut
- 20 Nm
Hex bolt
- 8 Nm
Brake Line
- To the left rear brake caliper
- Identification: tube fitting with threads M 12 x 1
- 14 Nm
Brake Line
- To the right rear brake caliper
- Identification: tube fitting with threads M 10 x 1
- 14 Nm
