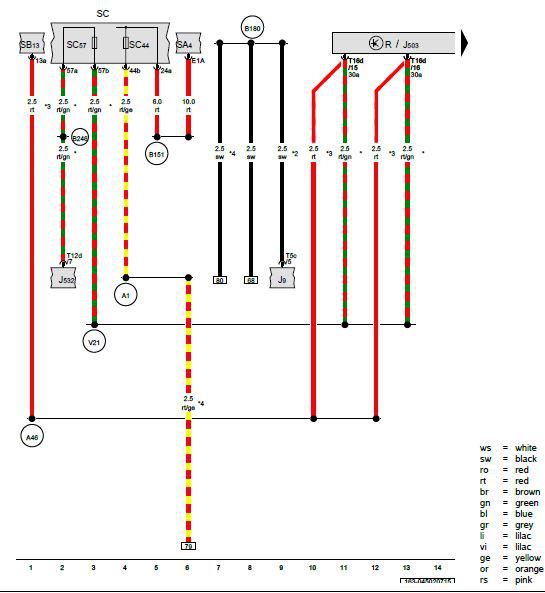

Radio/Navigation Display Unit Control Module, Radio, Fuse 4 (On Fuse Panel A), Fuse Panel C
J9 Rear window defogger relay
J503 Radio/navigation display unit control module
J532 Voltage Stabilizer
R Radio
SA4 Fuse 4 (on fuse panel A)
SB13 Fuse 13 (on fuse panel B)
SC Fuse panel C
SC44 Fuse 44 (on fuse panel C)
SC57 Fuse 57 (on fuse panel C)
T5c 5-Pin connector
T12d 12-Pin connector
T16d 16-Pin connector
A1 Positive connection (30a) (in instrument panel wiring harness)
A46 Radio positive connection (30) (in instrument panel wiring harness)
B151 Positive connection 3 (30a) (in interior wiring harness)
B180 Rear window defogger connection (in interior wiring harness)
B246 Stabilized positive connection 30a (in interior wiring harness)
V21 Positive connection (30) (in wiring radio/amplifier wiring harness)
* Only for vehicles with Stop/Start system
*2 only for vehicles with High equipment (AW1)
*3 Only for vehicles without Start/Stop system
*4 only for vehicles with Low equipment (AW0)
