Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Engine Control Module

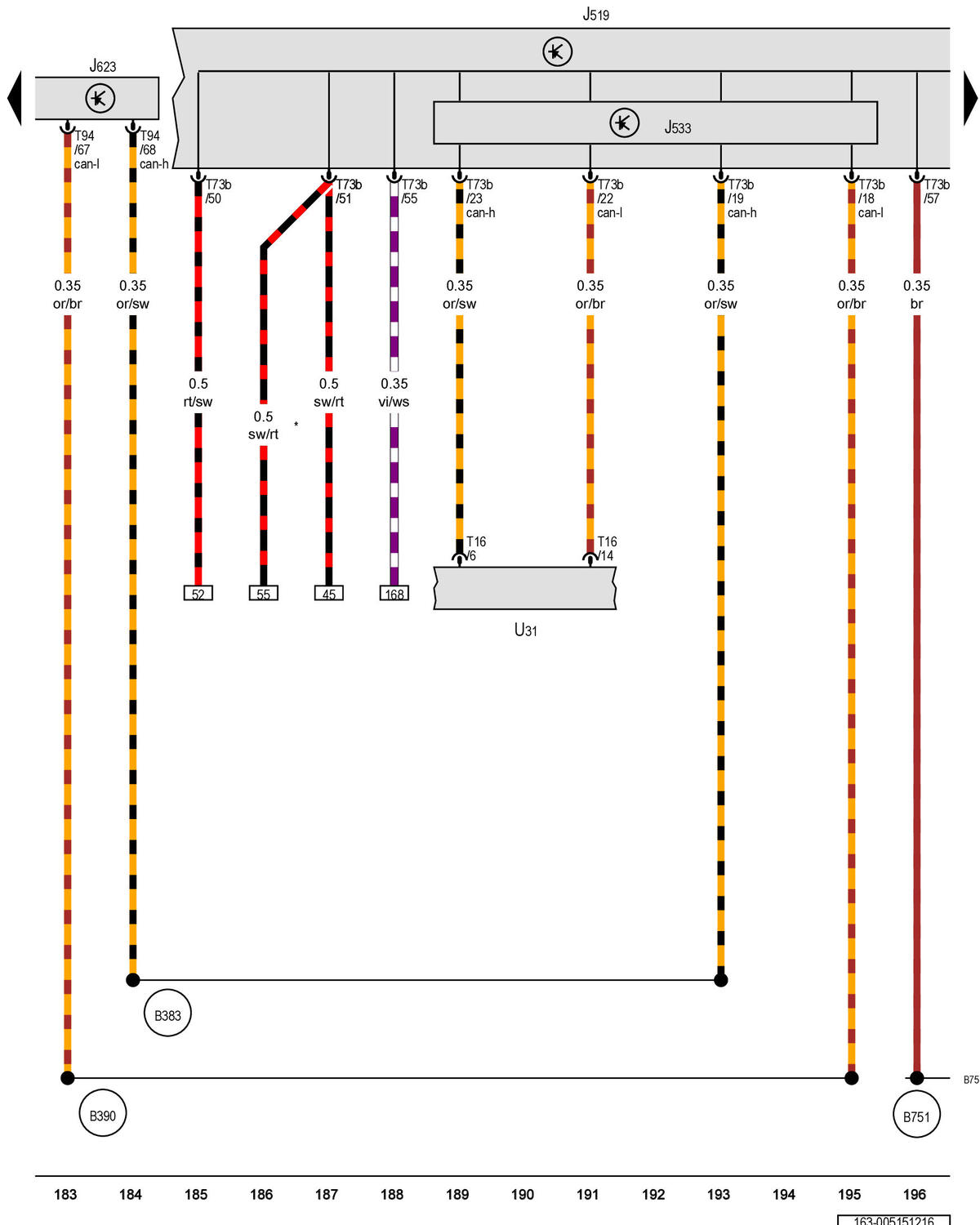

GWW163-005151216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle electrical system control module

J533

Data bus on board diagnostic interface

J623

Engine control module

T16

16-pin connector

T73b

73-pin connector

T94

94-pin connector

U31

Diagnostic connection

Powertrain CAN bus high connection 1 (in main wiring harness)

Powertrain CAN bus low connection 1 (in main wiring harness)

CAN bus Low display and control connection 1
