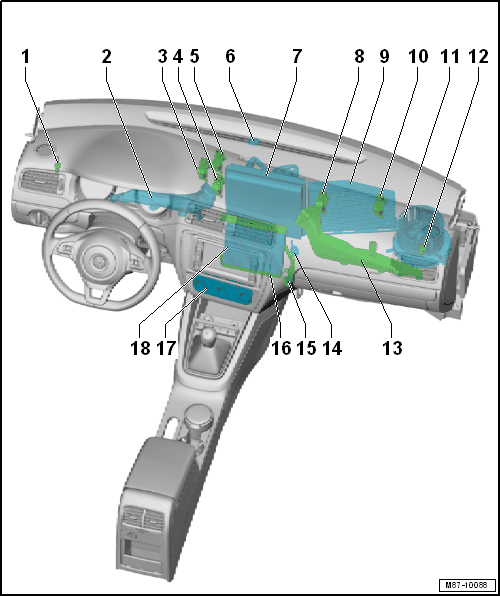

Component Location Overview - Components In Front Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Vent Temperature Sensor -G150-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • An incorrectly installed vent temperature sensor causes flow-generated noise
   • Removing and installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
2. Driver Side Footwell Vent
   • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
   • Removing and installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
3. Air Distribution Door Motor -V428- or Central Air Door Motor -V70-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
   • Air Distribution Door Motor -V428-, Removing and Installing, on Electric-Manual Climate Control System. Refer to Air Distribution Door Motor -V428-, REMOVING AND INSTALLING
   • Central Air Door Motor -V70-, Removing and Installing, on Climatronic. Refer to Central Air Door Motor -V70-, REMOVING AND INSTALLING
4. Left Temperature Control Door Motor -V158- or Temperature Control Door Motor -V68-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
   • Temperature Control Door Motor -V68-, Removing and Installing, on Electric-Manual Climate Control System. Refer to Temperature Control Door Motor -V68-, REMOVING AND INSTALLING
   • Left Temperature Control Door Motor -V158-, Removing and Installing, on Climatronic. Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING
5. Defroster Door Motor -V107-
   • Only for vehicles with Climatronic.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
   • Removing and installing. Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
6. Sunlight Photo Sensor -G107-
   • Removing and installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
7. Evaporator
   • Only for vehicles with an A/C system.
   • Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
   • Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
8. Right Temperature Control Door Motor -V159-
   • Only for vehicles with Climatronic.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
   • Removing and installing. Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
9. Dust and Pollen Filter
   • Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
10. Recirculation Door Motor -V113- or Fresh/Recirculated Air Door Motor -V154- or Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
    • Checking. Refer to Vehicle Diagnostic Tester.
    • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
    • Recirculation Door Motor -V113-, Removing and Installing, on Electric-Manual Climate Control System. Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING
    • Fresh/Recirculated Air Door Motor -V154-, Removing and Installing, Vehicles without A/C System. Refer to Fresh/Recirculated Air Door Motor -V154-, REMOVING AND INSTALLING
    • Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, Removing and Installing, on Climatronic. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
11. Fresh Air Blower -V2-
    • Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
    • Removing and installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
12. Right Vent Temperature Sensor -G151-
    • Checking. Refer to Vehicle Diagnostic Tester.
    • An incorrectly installed vent temperature sensor causes flow-generated noise
    • Removing and installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
13. Front Passenger Side Footwell Vent
    • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
    • Removing and installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
14. Evaporator Temperature Sensor -G308-
    • Only for vehicles with an A/C system.
    • Checking. Refer to Vehicle Diagnostic Tester.
    • Removing and installing. Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
15. Condensation Water Drain
    • Only for vehicles with an A/C system.
    • Checking using the Vehicle Diagnostic Tester. Refer to CONDENSATION WATER DRAIN, CHECKING .
    • Removing and installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
16. Heater Core
    • Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
    • Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
17. Display Control Head
    • Overview - Display Control Head. Refer to OVERVIEW - DISPLAY CONTROL HEAD
    • Removing and installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
18. Auxiliary Heater Heating Element -Z35-
    • Checking using the Vehicle Diagnostic Tester. Refer to Auxiliary Heater Heating Element -Z35-, CHECKING .
    • Removing and installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
