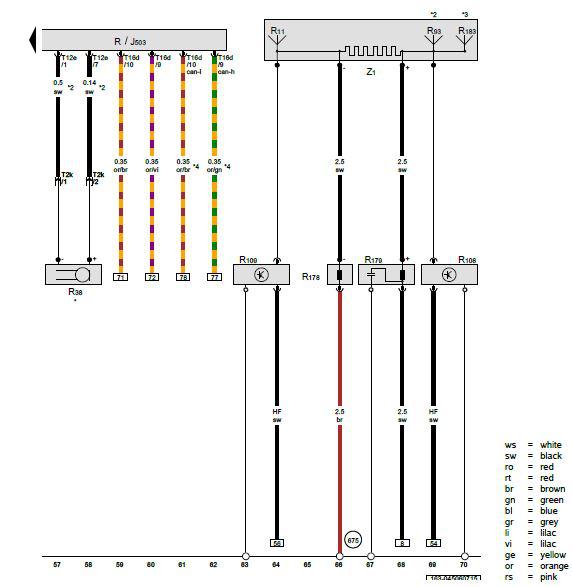

Radio/Navigation Display Unit Control Module, Radio, Antenna, Radio Antenna 2, Left Antenna Module, Right Antenna Module, Digital Radio Antenna, Rear Window Defogger
J503 Radio/navigation display unit control module
R Radio
R11 Antenna
R38 Telephone microphone
R93 Radio antenna 2
R108 Left antenna module
R109 Right antenna module
R178 FM frequency filter in negative wire
R179 FM frequency filter in positive wire
R183 Digital radio antenna
T2k 2-Pin connector
T12e 12-Pin connector
T16d 16-Pin connector
Z1 Rear window defogger
675 Ground connection 2 in luggage compartment on the right side
* Refer to applicable telephone systems wiring diagram
*2 Depending on equipment
*3 Only for vehicles with a digital radio
*4 only for vehicles with Low equipment (AW0)
