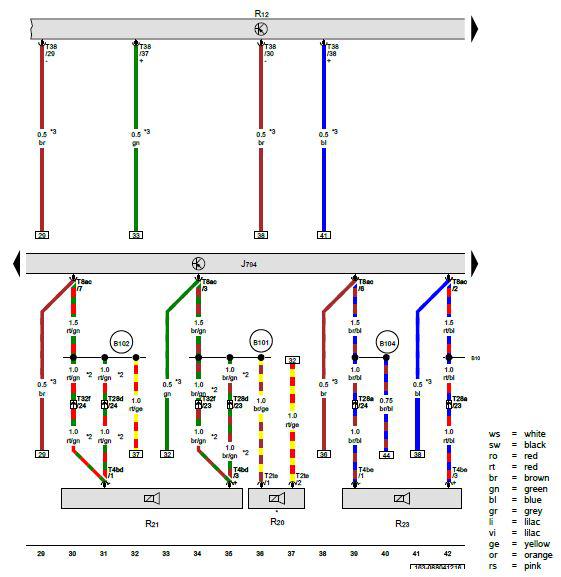

Information Electronics Control Module 1, Amplifier, Left Front Treble Speaker, Left Front Bass Speaker, Right Front Bass Speaker
J794 Information electronics control module 1
R12 Amplifier
R20 Left front treble speaker
R21 Left front bass speaker
R23 Right front bass speaker
T2te 2-Pin connector
T4bd 4-Pin connector, black
T4be 4-Pin connector
T8ac 8-Pin connector
T8a 8-Pin connector
T8d 8-Pin connector
T32f 32-Pin connector
T38 38-Pin connector, black
B101 Left front speaker positive connection (in main wiring harness)
B102 Left front speaker negative connection (in main wiring harness)
B103 Right front speaker positive connection (in main wiring harness)
B104 Right front speaker negative connection (in main wiring harness)
* pre-wired component
*2 Depending on equipment
*3 Only for vehicles with an amplifier
