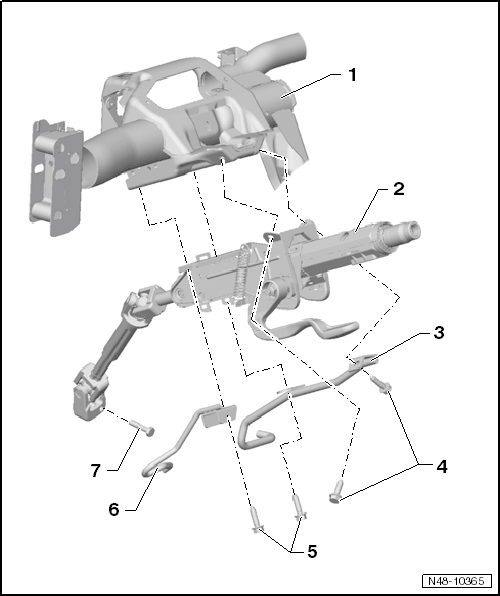

Overview - Steering Column
NOTE:
Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Assembly Carrier with Bracket
- Steering Column
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Brake Pedal Crash Brace
- For the allocation refer to the parts information.
- Bolt
- 20 Nm
- Note the tightening sequence. Refer to Installing - For all Vehicles - Tighten the bolts in the shown sequence to the tightening specification .
- Bolt
- 20 Nm
- Note the tightening sequence. Refer to Installing - For all Vehicles - Tighten the bolts in the shown sequence to the tightening specification .
- Clutch Pedal Crash Brace
- For the allocation refer to the parts information.
- Bolt
- 30 Nm
- Always replace after removing
