Passenger Occupant Detection System Control Module -J706- Bracket, Removing And Installing: Removing

-- Remove the Passenger Occupant Detection System Control Module - J706-. Refer to Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING .

NOTE:

The components pictured can vary in form and appearance from the present vehicle. However the assembly and functionality are identical.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

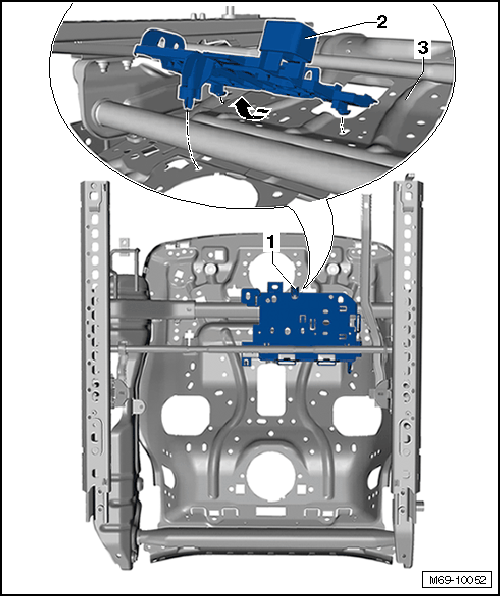

-- Remove the clamping pin on the clip -1- and loosen the clip -1-.

-- Remove the bracket -2- from the seat frame -3- in direction of -arrow-.
