Passenger Occupant Detection System Control Module -J706-, Removing And Installing: Notes

Special Tools And Workshop Equipment Required

WARNING:

Observe the safety precautions for pyrotechnical components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must " Discharge Static Electricity". For example, this can be done by briefly touching the door striker.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the seat repair fixture. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

NOTE:

The components pictured can vary in form and appearance from the present vehicle. However the assembly and functionality are identical.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

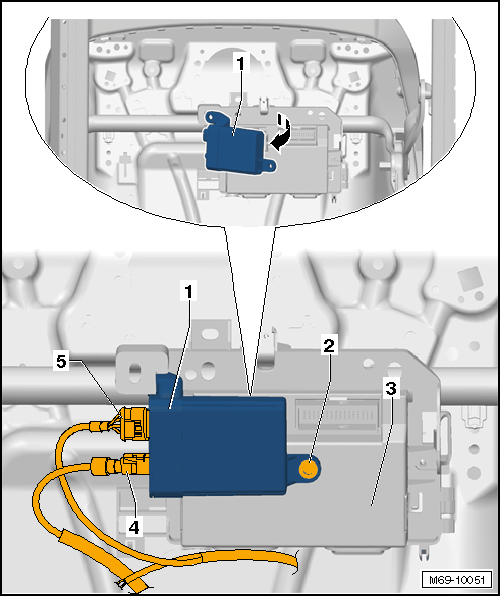

-- Disconnect the connectors - 4 and 5- from the Passenger Occupant Detection System Control Module -J706- -1-.

-- Remove the bolt -2-.

-- Remove the Passenger Occupant Detection System Control Module -J706- -1- from the bracket -3- in direction of -arrow-.
