00 General, Technical Data: Causes: Components

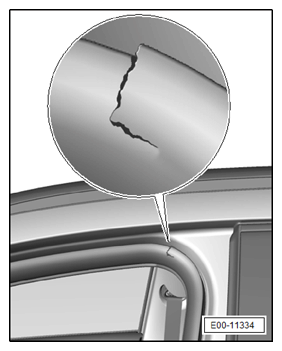

Damaged seals for example on the doors and lids.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Faulty adjusted doors, lids, window glass and sunroof panel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

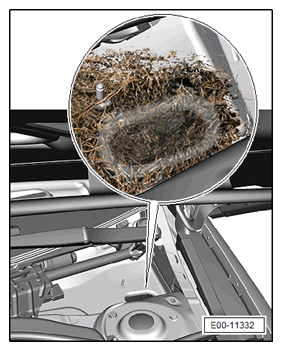

Via leaves and flowers in the afflicted water drains.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

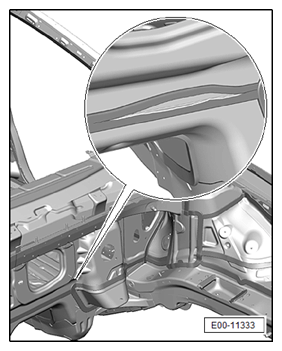

Forgotten sealant, not fitting seals

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

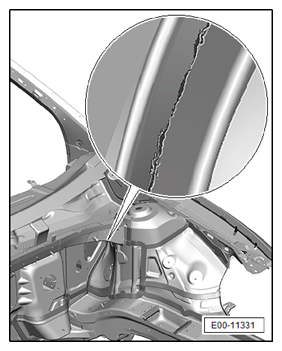

An improper repair of accident damage, incorrectly welded areas, burned through weld points or weld seams.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Plugs and grommets -1- that were not properly or completely installed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional possibilities for a water leak:

• Customer operating error.
• Additional installation, removal or customizations.
• Production faults such as missing fine-seam sealant in the body area such as faulty welding and boding that is not clean.
• Constructional properties, not technically changeable (for example missing gutter) These should be explained to the customer.
• Aging or wear of seals and sealant.
