Front Axle Differential Lock, Transporting

• Prevent front axle differential lock connectors from becoming damaged.

-- To prevent oil from escaping, transport the front axle differential lock as follows:

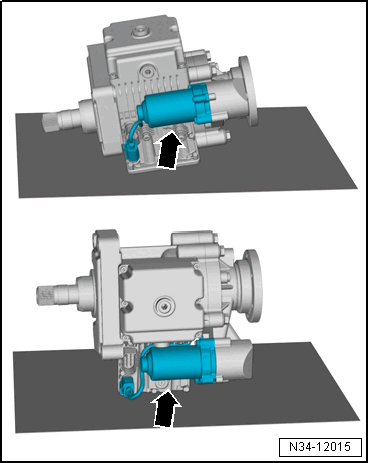

• When transporting, the All Wheel Drive Clutch Pump -V181- -arrows- is located in one of the positions illustrated.
