12-Pin Connector 4, Cd Changer -R41- /External Audio Source Connection -R199- /Multimedia System Control Module -J650-

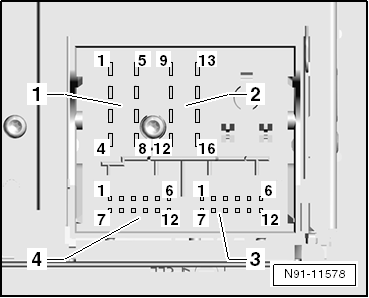

Fig 1: 12-pin Connector 4, CD Changer -R41- /External Audio Source Connection -R199- /Multimedia System Control Module -J650-
- Left audio input (+) External audio source connection -R199- /Multimedia system control module -J650-
- Audio input ground External audio source connection -R199- /Multimedia system control module -J650-
- Audio ground from the CD changer -R41-
- Terminal 30 to the CD changer
- Not assigned
- DATA OUT to CD changer
- Right audio input (+) External audio source connection -R199- /Multimedia system control module -J650-
- Left audio from the CD changer
- Right audio from the CD changer
- Control signal to the CD changer
- DATA IN from the CD changer
- CLOCK from the CD changer
