Antenna Selection Control Module: Removal

Do the following before starting the procedure:

-- Turn off the ignition and all electric consumers and remove the key.

-- Slide right front seat into the rearmost position.

-- Remove cover under seat in -direction of arrow-.

Fig 1: Identifying Cover At Bottom Of Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect electrical connection -A-.

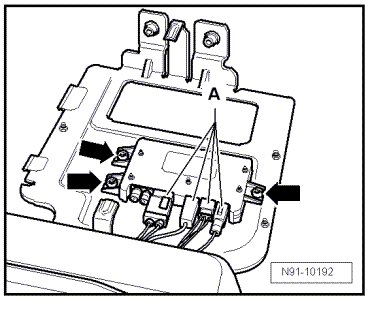

Fig 2: Antenna Selection Control Module Connector And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove clips -arrows- and remove control module.

Fig 3: Antenna Selection Control Module Connector And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
