External Audio Source Connection -R199-: Removing

-- If necessary, remove the CD changer. Refer to CD CHANGER .

-- Remove the back part of the center console. Refer to Removal and Installation .

-- Press the clips -arrows- in the AUX IN socket using the 3409 and slide the AUX IN socket out of its mount.

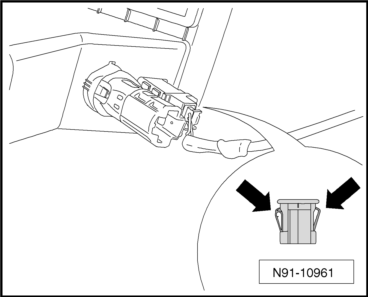

Fig 1: Pressing Clips -Arrows- In AUX IN Socket Using 3409 & Slide AUX IN Socket Out Of Its Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect electrical connector.

Fig 2: Identifying Electrical Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
