Coolant Pump, Removing And Installing: Installing

Install in reverse order of removal and Note The Following  :

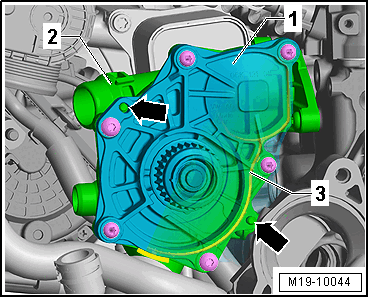

-- Make sure the pump -1- on the controller housing -2- and the seal -3- are seated properly -arrows-.

Fig 1: Identifying Controller Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

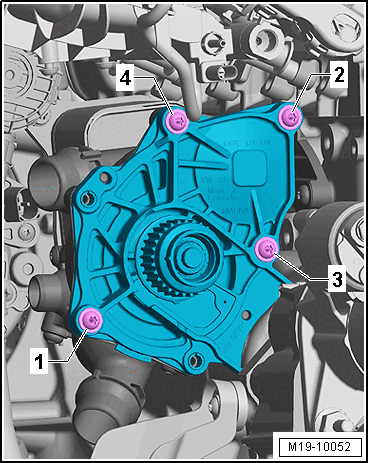

-- Tighten the coolant pump bolts. Refer to Figure.

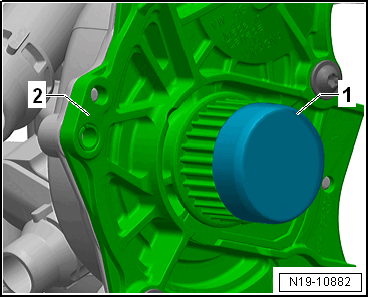

-- After installing a new coolant pump -2-, remove the cap -1- from the drive wheel.

-- Install the toothed belt on the coolant pump. Refer to COOLANT PUMP TOOTHED BELT, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to Filling .

Fig 2: Identifying Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
