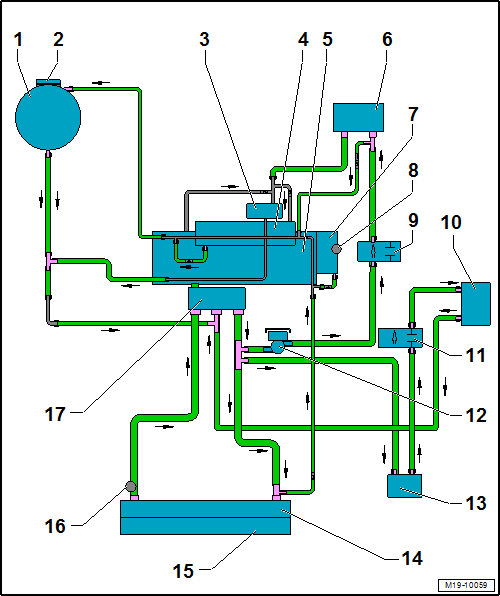

Vehicles With DSG Transmission, Engine Code CULC

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Coolant Expansion Tank
2. Coolant Expansion Tank Cap
   • Pressure Relief Valve, Checking. Refer to Pressure Relief Valve in Cap, Checking .
3. Turbocharger
4. Exhaust Manifold
   • Integrated in cylinder head
5. Cylinder Head/Cylinder Block
   • Change the coolant after replacing
6. Heater Core for the Heater
   • Change the coolant after replacing
7. Coolant Pump
   • COOLANT PUMP, REMOVING AND INSTALLING
8. Engine Coolant Temperature Sensor -G62-
9. Coolant Shut-Off Valve -N82-
   • Removing and Installing. Refer to Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING .
10. Transmission Fluid Cooler
11. Transmission Coolant Valve -N488-
    • Removing and Installing. Refer to Transmission Coolant Valve -N488-, REMOVING AND INSTALLING, VEHICLES WITH DSG TRANSMISSION .
12. Heater Support Pump -V488-
    • Removing and Installing. Refer to After-Run Coolant Pump -V51- / Heater Support Pump -V488-, REMOVING AND INSTALLING .
13. Auxiliary Radiator
    • Removing and Installing. Refer to AUXILIARY COOLER, REMOVING AND INSTALLING .
14. Radiator
    • Change the coolant after replacing
    • Removing and Installing. Refer to RADIATOR, REMOVING AND INSTALLING .
15. Charge Air Cooler
16. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
    • Removing and Installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
17. Coolant Thermostat Housing
    • Removing and Installing. Refer to COOLANT THERMOSTAT HOUSING, REMOVING AND INSTALLING .
