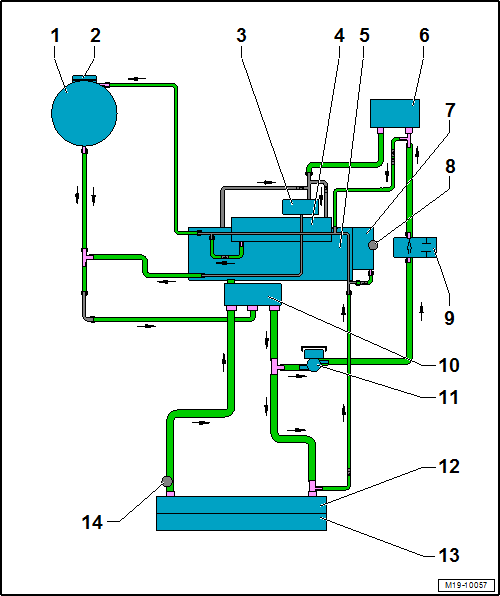

Vehicles With Manual Transmission, Engine Code CULC

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Coolant Expansion Tank
2. Coolant Expansion Tank Cap
   • Pressure Relief Valve, Checking. Refer to Pressure Relief Valve in Cap, Checking .
3. Turbocharger
4. Exhaust Manifold
   • Integrated in cylinder head
5. Cylinder Head/Cylinder Block
   • Change the coolant after replacing
6. Heater Core for the Heater
   • Change the coolant after replacing
7. Coolant Pump
   • COOLANT PUMP, REMOVING AND INSTALLING
8. Engine Coolant Temperature Sensor -G62-
9. Coolant Shut-Off Valve -N82-
   • Removing and Installing. Refer to Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING .
10. Coolant Thermostat Housing
    • Removing and Installing. Refer to COOLANT THERMOSTAT HOUSING, REMOVING AND INSTALLING .
11. Heater Support Pump -V488-
    • Removing and Installing. Refer to After-Run Coolant Pump -V51- / Heater Support Pump -V488-, REMOVING AND INSTALLING .
12. Radiator
    • Change the coolant after replacing
    • Removing and Installing. Refer to RADIATOR, REMOVING AND INSTALLING .
13. Charge Air Cooler
14. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
    • Removing and Installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
