Component Location Overview - Central Locking, Convertible

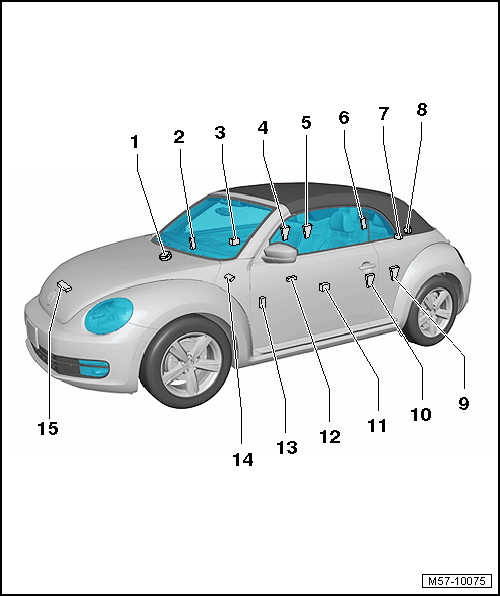

Fig 1: Identifying Central Locking Components Overview (Convertible)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Alarm Horn -H12-
   • Component location: inside the plenum chamber
   • Removing and installing. Refer to ALARM HORN -H12-, REMOVING AND INSTALLING .
2. Connector Station
   • Installed location: Left A-pillar in the vehicle interior
   • Remove the A-pillar lower trim to disconnect the connector. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
3. Front Passenger Door Control Module -J387-
   • Integrated inside the Front Passenger Window Regulator Motor -V148-
   • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
4. Front Passenger Door Central Locking System Motor -V57-
   • Integrated in the door lock on the front passenger side
   • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
5. Right Rear Door Control Module -J389-
   • Integrated inside the Right Rear Window Regulator Motor -V27-
   • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
6. Fuel Filler Door Lock Motor -V155-
   • Removing and Installing. Refer to ADJUSTING ELEMENT, REMOVING AND INSTALLING .
7. Rear Lid Opening Motor -V254-
   • Integrated inside the rear lid lock
   • Removing and Installing. Refer to REAR LID LOCK, REMOVING AND INSTALLING, SEDAN .
8. Release Button In Rear Lid Handle -E234-
   • Integrated in the mechanism
   • Removing and Installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
9. Left Rear Door Control Module -J388-
   • Integrated inside the Left Rear Window Regulator Motor -V26-
   • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
10. Driver Door Central Locking System Motor -V56-
    • Integrated in the door lock on the driver side
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
11. Driver Door Control Module -J386-
    • Integrated inside the Driver Window Regulator Motor -V147-
    • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
12. Power Window Control Head in Driver Door -E512-
    • Component location: inside the driver door trim panel
    • Removing and Installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512-, REMOVING AND INSTALLING .
13. Connector Station
    • Installed location: Left A-pillar in the vehicle interior
    • Remove the A-pillar lower trim to disconnect the connector. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
14. Vehicle Electrical System Control Module -J519-
    • Component location: under the instrument panel on the driver side
    • Removing and Installing. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
15. Engine Hood Contact Switch -F266-
    • Component location: on the latch
    • Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
