Auxiliary Cooler, Removing And Installing: Removing

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER (CONVERTIBLE) / FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING (CONVERTIBLE) .

-- Clamp off both coolant hoses -1- with :VAS6362  -3-.

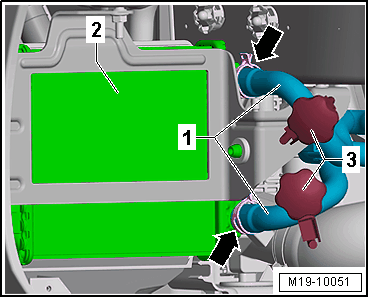

Fig 1: Identifying Auxiliary Cooler And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the spring-type clamps -arrows- to remove both coolant hoses -1- from the auxiliary cooler -2-.

-- Remove nuts -arrows- and auxiliary cooler -1- with bracket -2-.

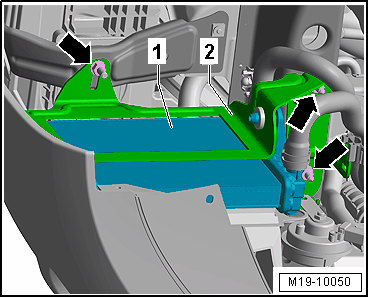

Fig 2: Identifying Auxiliary Cooler And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
