Version 1

NOTE:

The amount of oil used during an engine oil change from the service table is determined by trial, and is sufficient for the engine operation in all operating conditions. For all services the oil level must be adjusted if necessary if the customer requests it. This makes an additional filling possible to the specified oil change amount to the maximum limit on the dipstick. Due to tolerances and also to oil temperature and flow back time, different fill capacities are possible.

When using B20-fuel (diesel fuel with 20 % bio biodiesel) there is a higher amount of fuel entry in the engine oil. The -1- compensates for possible overfilling, that can occur due to fuel entry.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

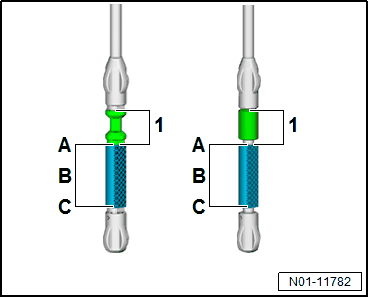

1 - Compensation area for possible fuel entry. Do not fill or drain the oil.

A - Do not add oil.

B - The oil can be filled to the maximum limit -A-.

C - Add oil. The oil level must be at least in the upper half of the measuring range -B-.

-- At an oil level above the compensation area -1- the engine oil must be changed.

-- If the oil level is under the minimum mark -C- fill the oil, minimum of 0.5 liters. Refer to SERVICE WORK for the oil specification.
