Control Module/Digital Sound System Amplifier, Removing And Installing: Installing

NOTE:

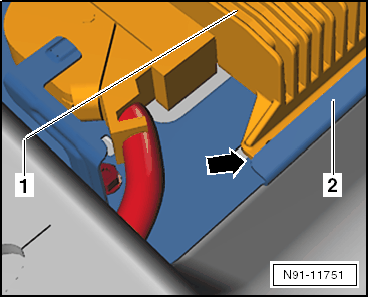

When installing, make sure the Amplifier -R12- -1- is pushed in correctly into the mount -2- on the module carrier.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal.

-- Tighten the threaded connections to the tightening specification.

NOTE:

Make sure the cover is mounted correctly on the front edge of the module carrier when installing it.

Lock the cover by the left and right rear catches.
