Rain/Light Recognition Sensor, Removing And Installing: Installing
Install in reverse order of removal. Note the following:
- Always clean the windshield surface inside the Rain/Light Recognition Sensor -G397- holder before installing. Remove any traces of the connecting pad still remaining on the windshield.
- Surface (connecting pads) of Rain/Light Recognition Sensor -G397- must not be contaminated or damaged when installing. Replace the Rain/Light Recognition Sensor -G397- if the connecting pad is damaged.
-- Thoroughly clean the windshield inside of the retaining plate with isopropyl alcohol. Refer to INTERIOR REARVIEW MIRROR .
-- Remove the cap from the new Rain/Light Recognition Sensor -G397-.
Surface (connecting pads) of the Rain/Light Recognition Sensor -G397- must not be contaminated when installing.
If the surface (connecting pads) of Rain/Light Recognition Sensor -G397- is soiled, it can be potentially cleaned by "applying" and then "pulling off" one or more adhesive strips.

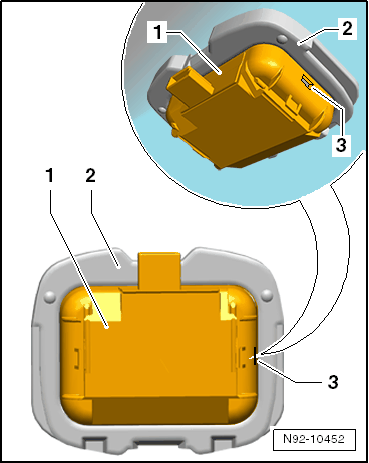

-- Insert the Rain/Light Recognition Sensor -G397- -1- into the retaining plate on the windshield -2- and then press it in securely.
Approximately 10 minutes after installing, there must be no air bubbles between the windshield and connecting pads for the Rain/Light Recognition Sensor -G397-.

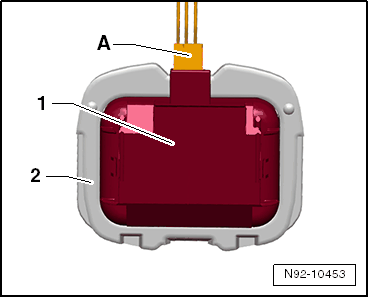

-- Connect the connector -A- and install the wire cover to secure the Rain/Light Recognition Sensor -G397- -1-.
-- Install the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR .
-- Code the Rain/Light Recognition Sensor -G397- using the Vehicle Diagnostic Tester. Refer to Rain/Light Recognition Sensor -G397-, CODING .
