Overview - Key Battery, From 06/2014

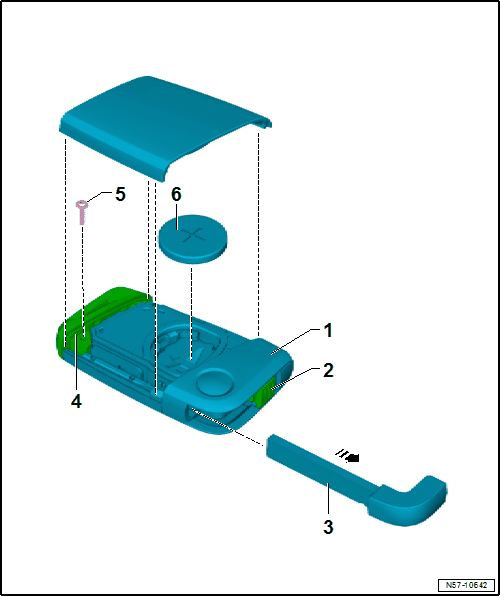

GWWN57-10642Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radio-Frequency Unit
  2. Release
  3. Emergency key
  4. Cap
    • Removing and installing
  5. Bolt
    • 1 Nm
  6. Battery
    • Removing and installing
  7. Battery Compartment Cover
