Overview - Key Battery, Through 05/2014

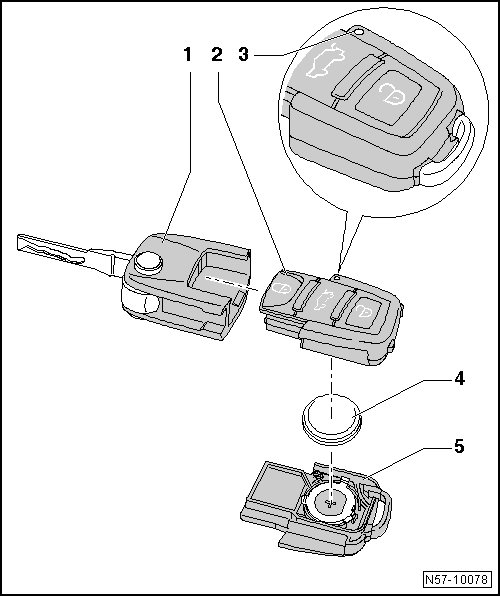

GWWN57-10078Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Key with Variable Code Transponder
  2. Radio Frequency Unit - Upper Section
  3. LED
    • This LED must blink when remote control is operated.
    • If the LED does not blink when operating a button, the battery is completely drained and must be replaced.
  4. Battery
  5. Radio Frequency Unit - Lower Section
