Remove The Bracket For The Amplifier -R12-.

Remove The Bracket For The Amplifier -R12-.

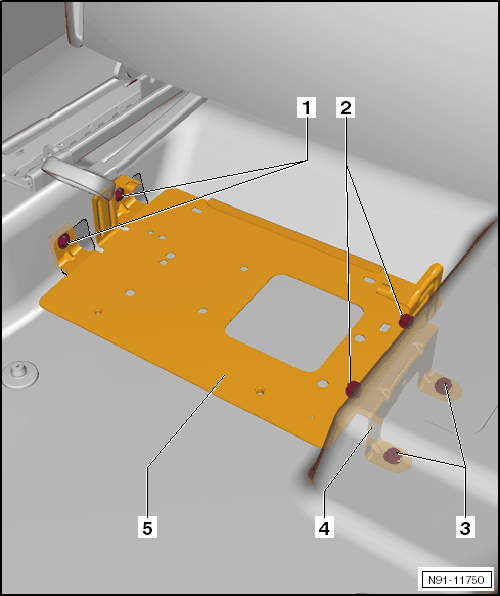

GWWN91-11750Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -1- on the center tunnel and the screws -2- (6 Nm) on the bracket.

-- Remove the module carrier -5-.

-- Remove the nuts -3- on the bracket.

-- Remove the bracket -4-.

Installing

Install in reverse order of removal.
