Engine Control Module -J623- WITH PROTECTIVE HOUSING, REMOVING AND INSTALLING: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

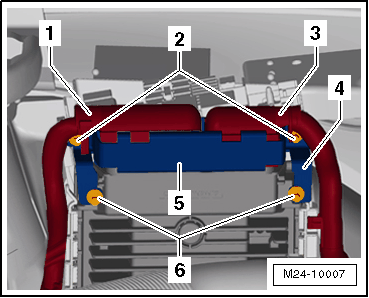

-- Install the engine control module -1- into the guides -3- until it locks.

-- If the control module was replaced, then attach the bracket -4- to the engine control module with shear bolts -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the shear bolts -6- just enough until the bolt head breaks off.

-- Connect the connectors -1 and 3- to the engine control module.

-- Install the locking mechanism -5- with shear bolts -2-.

-- Tighten the shear bolts -2- until the bolt heads break off.

-- Install the E-box cover -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Install the battery. Refer to BATTERY .
