Engine Control Module -J623- WITH PROTECTIVE HOUSING, REMOVING AND INSTALLING: Removing

-- Switch off the ignition.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the battery. Refer to BATTERY .

-- Remove the E-box cover inside the engine compartment -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

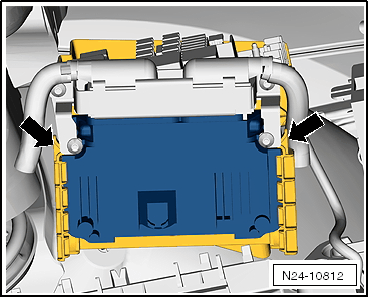

-- Free up the wiring harness and pull engine control module upward out of its mount. Push the locking mechanism -arrows- to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

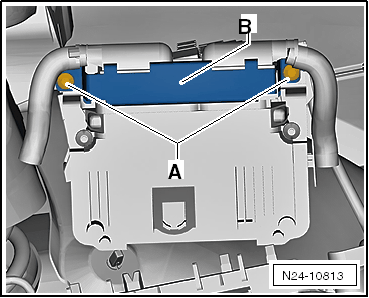

-- Remove the bolts -A-. Push the wiring harness as far as possible to the side. Remove the locking mechanism -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock the connector and pull it off the engine control module.
