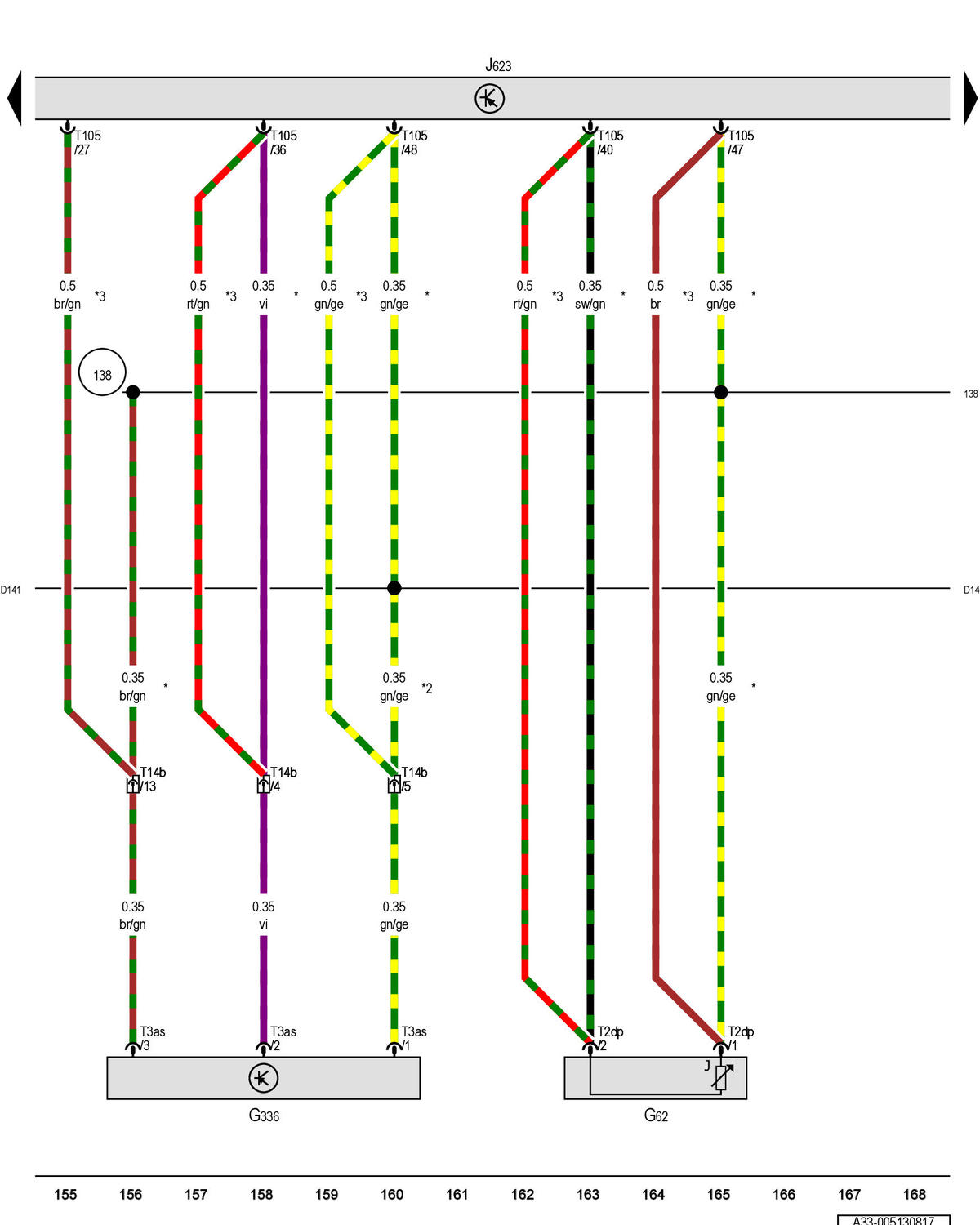

Engine Coolant Temperature Sensor, Intake Manifold Runner Position Sensor, Engine/Motor Control Module: Notes

GWWA33-005130817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
