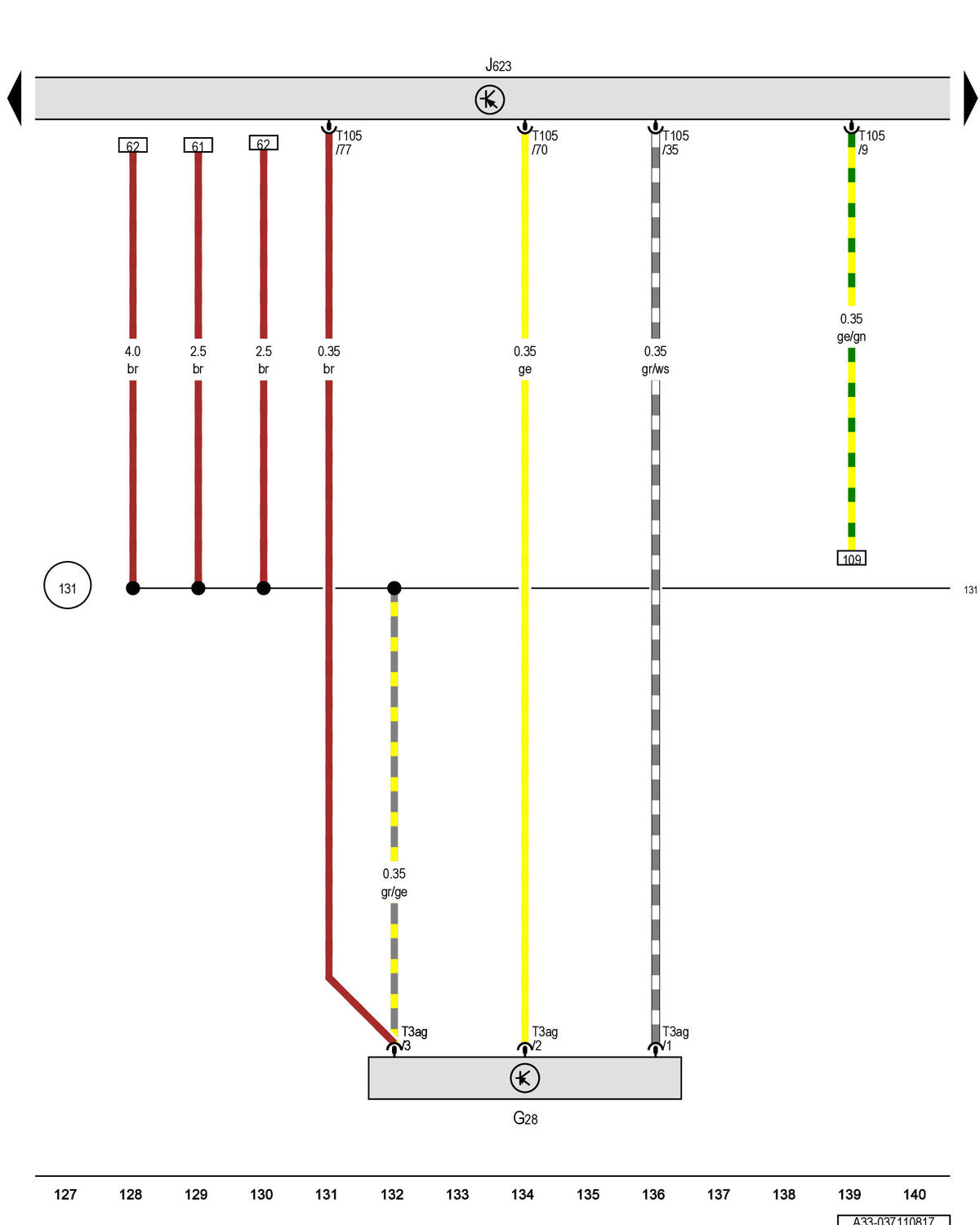

Engine Speed Sensor, Engine/Motor Control Module: Notes

GWWA33-037110817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
