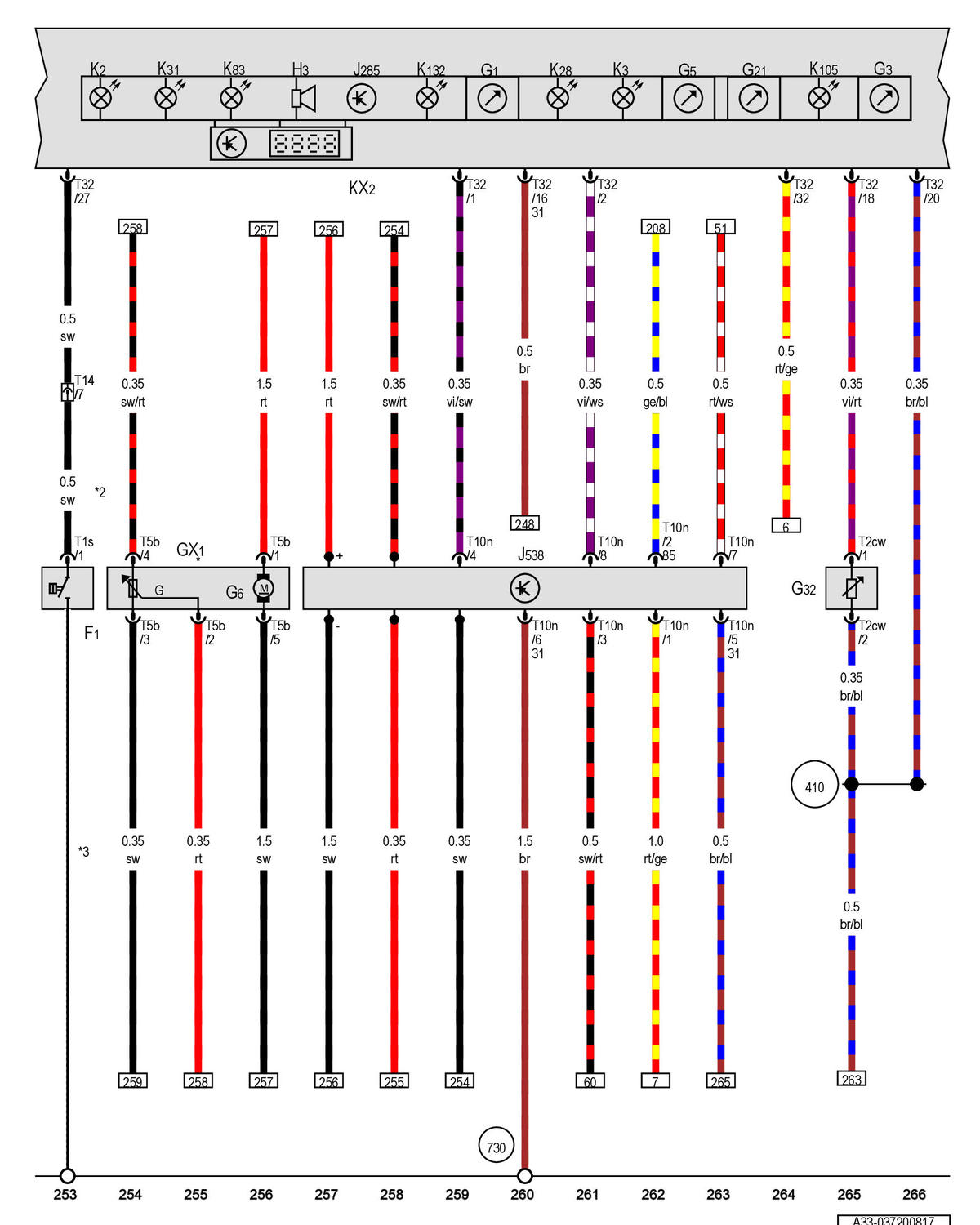

Oil Pressure Switch, Fuel Delivery Unit, Transfer Fuel Pump, Engine Coolant Level Sensor, Instrument Cluster Control Module, Fuel Pump Control Module, Instrument Cluster: Notes

GWWA33-037200817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
