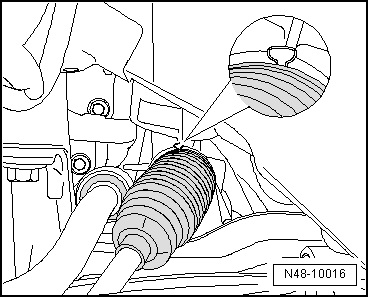

Tighten New Clamp Using VAS6199

-- Tighten new clamp using :VAS6199  to the extent depicted in the illustration.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the tie rod end up to the marking made earlier during the removal. Refer to TIE ROD END, REMOVING AND INSTALLING .

-- Install the front wheel and tighten.

-- Perform a vehicle alignment.

-- If both tie rods were replaced, then the basic setting for the Steering Angle Sensor -G85- must be performed using the Vehicle Diagnostic Tester.

-- Then perform the basic setting on the steering using the Vehicle Diagnostic Tester.
