Component Location Overview - Transmission Control: Notes

-- Touch a grounded object before working on electrical components. Do not directly touch connectors or open electronic components.

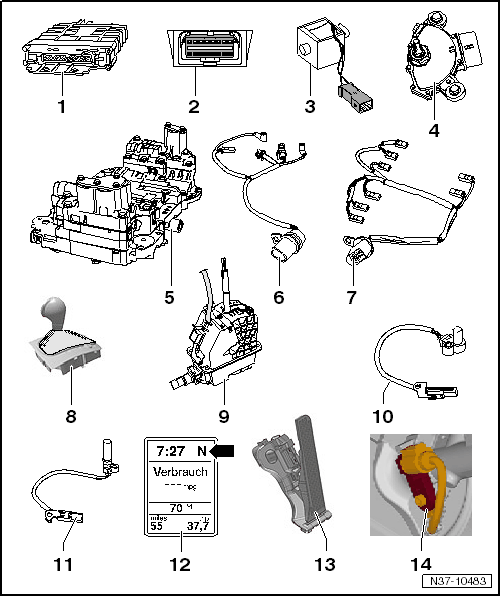

GWWN37-10483Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transmission Control Module -J217-
  2. Data Link Connector
    • Component location. Refer to  14
  3. Shift Lock Solenoid -N110-
    • Component location: is integrated permanently inside the selector mechanism and cannot be replaced separately
    • Can be checked. Refer to Vehicle Diagnostic Tester "Guided Fault Finding"  function.
  4. Multifunction Transmission Range Switch -F125-
    • Component location. Refer to  14
    • Can be checked. Refer to Vehicle Diagnostic Tester "Guided Fault Finding"  function.
    • Removing, installing and adjusting. Refer to SELECTOR MECHANISM .
  5. Valve Body
  6. Sensor Wiring Harness
  7. Solenoid Valve Wiring Harness
  8. Handle with Shift Cover
  9. Selector Mechanism with Selector Lever Cable
    • With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-
    • Component location: The components are permanently integrated in the selector mechanism circuit board and cannot be replaced separately.
    • The components can be checked. Refer to Vehicle Diagnostic Tester "Guided Fault Finding"  function.
    • The selector mechanism must be replaced if a component is faulty. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
    • The selector mechanism can only be replaced together with the selector lever cable
  10. Transmission Input Speed Sensor -G182-
  11. Transmission Output Speed Sensor -G195-
  12. Transmission Range Display -Y6-
    • Component location: the Transmission Range Display -Y6- -arrow- is integrated inside the instrument cluster.
    • Can only be replaced together with the instrument cluster. Refer to INSTRUMENT CLUSTER .
  13. Kick Down Switch -F8-
    • Not a separate component, the Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185- assume the function, both are integrated in the accelerator pedal module; component location. Refer to  14
    • Signal received in engine control module
    • Signal transmitted from the engine control module to the transmission control module via the CAN bus
    • Can be checked. Refer to Vehicle Diagnostic Tester "Guided Fault Finding"  function
  14. Brake Lamp Switch -F-
    • Component location. Refer to  14
    • Can be checked. Refer to Vehicle Diagnostic Tester "Guided Fault Finding"  function.

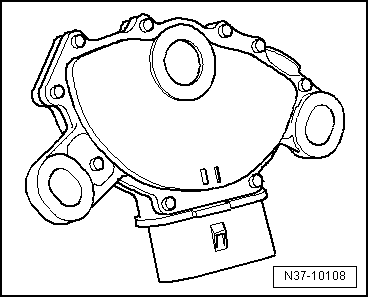

GWWN37-10108Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installed location: the multifunction transmission range switch is located on upper side of transmission.

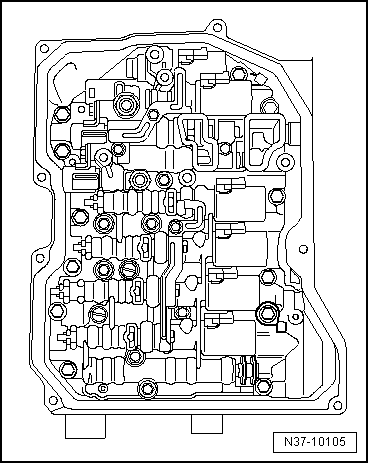

GWWN37-10105Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
