Transmission Control Module -J217-, VEHICLES WITH 1.8L GASOLINE ENGINE: Installing

-- Connect the connector to the Transmission Control Module -J217- and lock it.

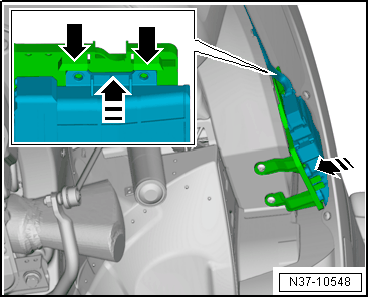

-- Insert the Transmission Control Module -J217- into the tabs on the bracket -arrows- and lock on the retaining tabs.

GWWN37-10548Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the wheel housing liner. Refer to WHEEL HOUSING LINER .
