Transmission Control Module -J217-, VEHICLES WITH 1.8L GASOLINE ENGINE: Removing

-- To remove and install, the left front wheel housing liner must be removed. Refer to WHEEL HOUSING LINER .

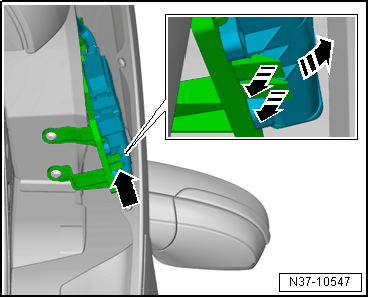

-- Press the retaining tabs in direction of -arrows- downward and remove the control module from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Transmission Control Module -J217-.
