Remove The Bolts -5 And 6- And Lower The Subframe Using VAS6931

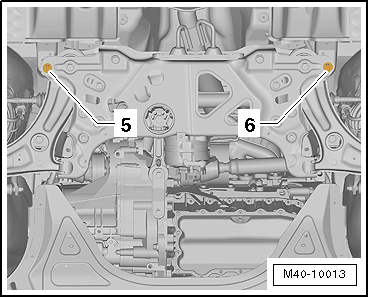

-- Remove the bolts -5 and 6- and lower the subframe using the :VAS6931  .

GWWM40-10013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Take power steering gear out to the rear.
