Transmission, Transporting

Special tools and workshop equipment required

• Engine Sling: 2024A
• Shop Crane: VAS6100

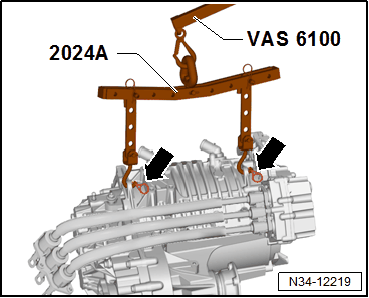

-- Engage the : 2024A  on the lifting eye and secure with the connector lock -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the : VAS6100  on the : 2024A  .

-- Set the transmission down, for example, into the transport container.
