Wiring Diagram
>>

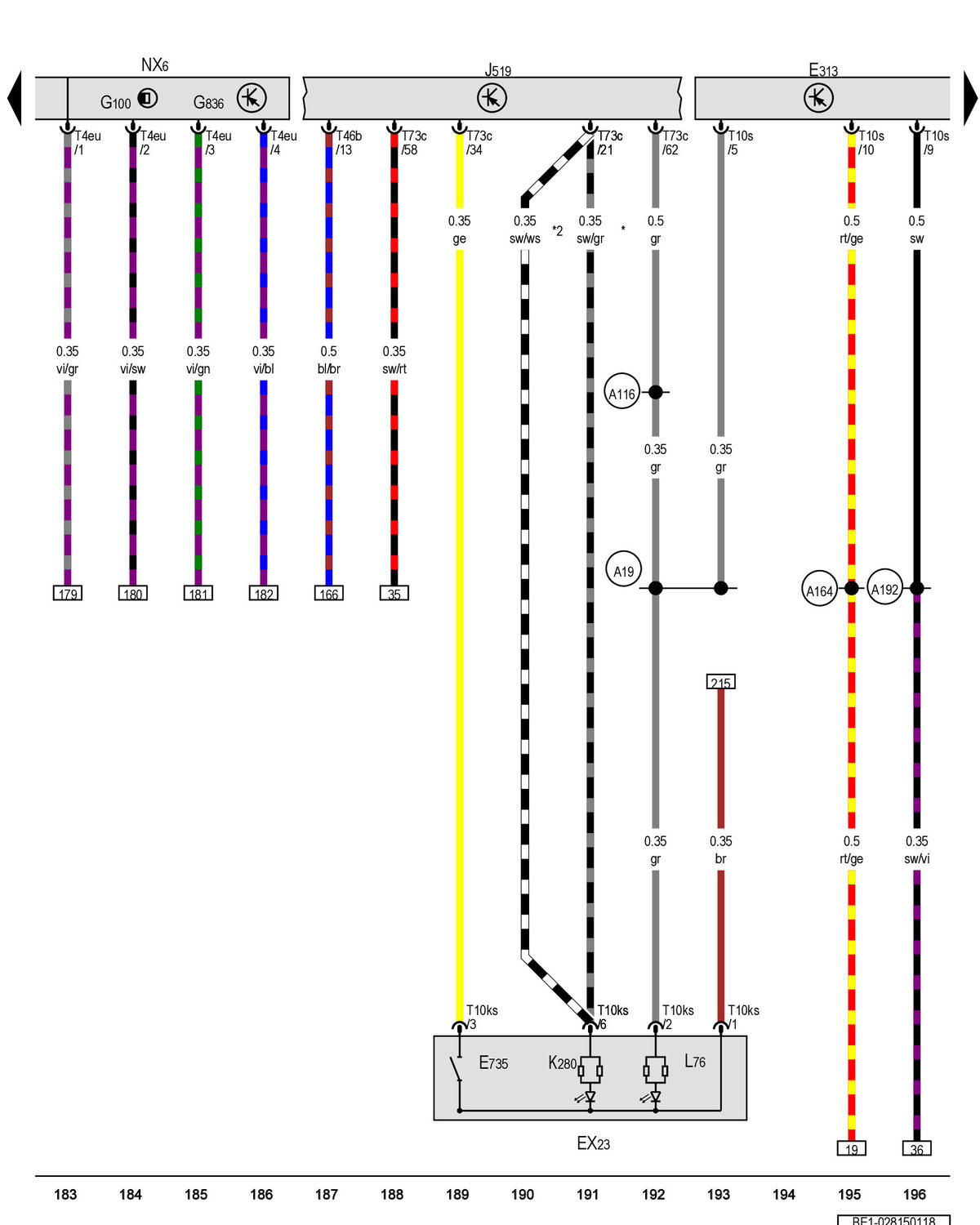

Wiring Diagram(S)
>>
Center Console Switch Module 1, Selector Lever, Driving Profile Selection Button, Brake Pedal Position Sensor, Brake Pedal Position Sensor 2, Vehicle Electrical System Control Module, Brake Booster
>>
