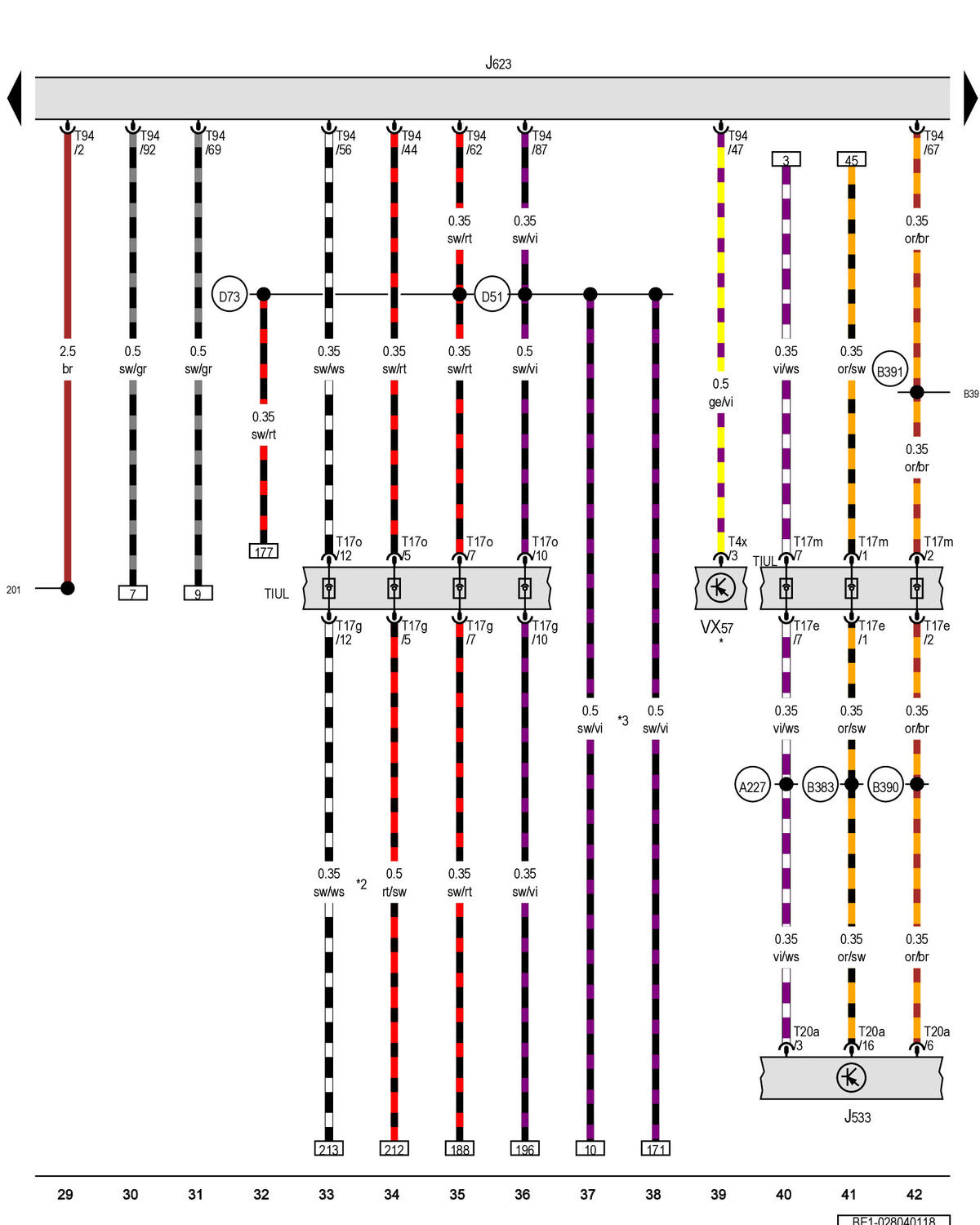

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Radiator Fan: Notes

GWWBE1-028040118
