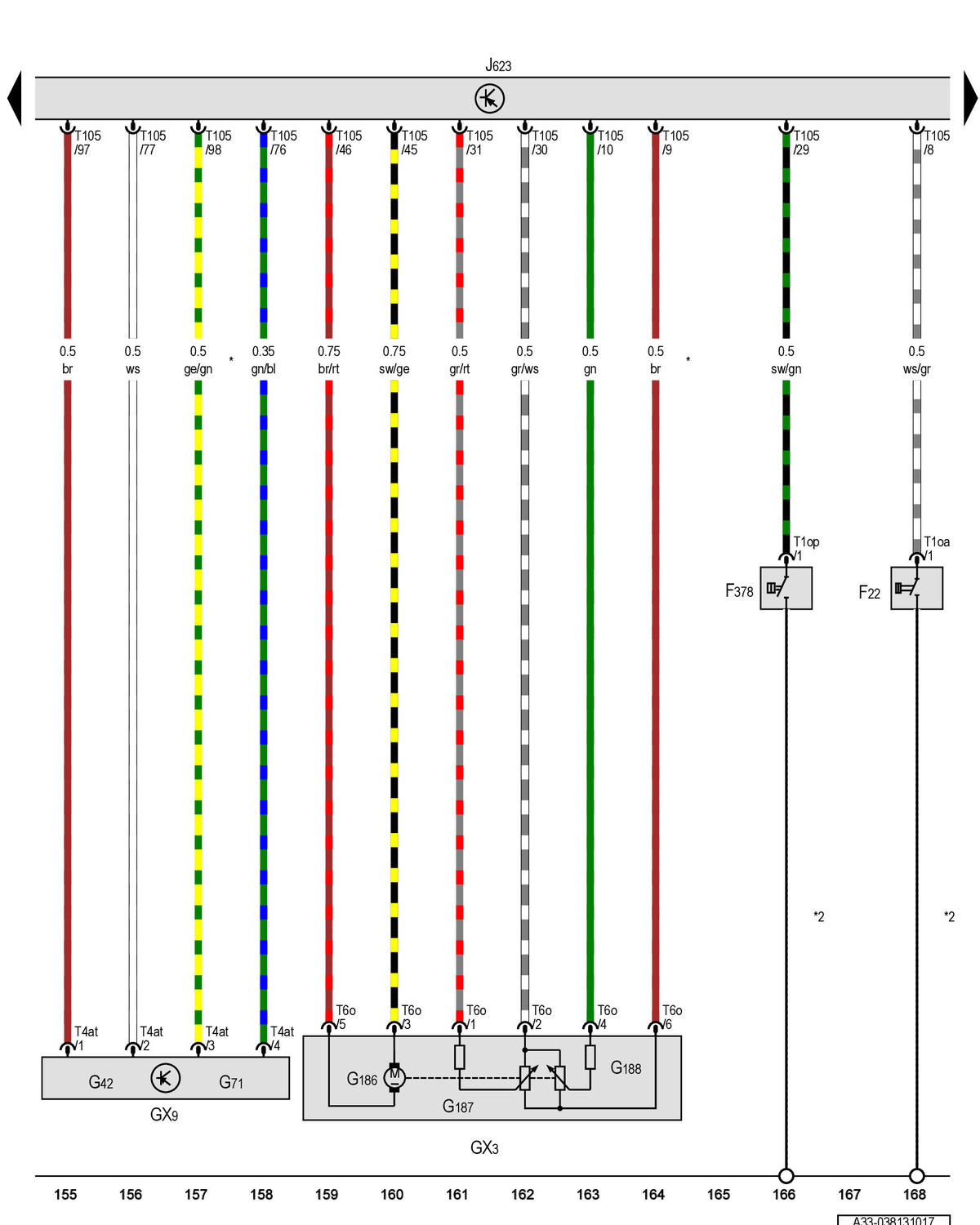

Reduced Oil Pressure Switch, Intake Manifold Sensor, Intake Air Temperature Sensor, Manifold Absolute Pressure Sensor, EPC Throttle Drive, Engine/Motor Control Module: Notes

GWWA33-038131017Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
